Neumann KM 183 D nx Stereo Set
by NeumannNeumann KM 183DSS Omnidirectional Digital Microphone (Stereo Set, Nickel)
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.

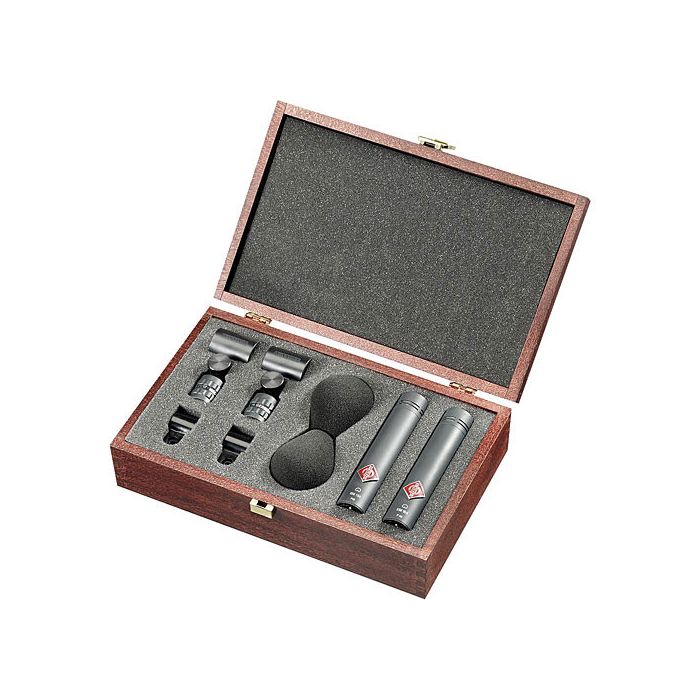

Paket beinhaltet
- Neumann KM 183DSS Omnidirectional Digital Microphone (Stereo Set, Nickel)
- 2 x WNS110 Foam Windscreen for KM Series Microphone
- 2 x SG21/17MT Swivel Mount with Clamp for 21mm Mics
- Wooden Box
- Limited 2-Year Warranty
The Neumann KM 183DSS are a matched, stereo pair of omnidirectional, pressure condenser microphones with an AES/EBU digital output and built-in A/D converter. Neumann continues to make strides in microphone technology with internal digital conversion and an AES/EBU 42 output standard that allows remote software operation with the DMI-2 digital microphone interface, or direct connection to AES inputs on digital mixers, field recorders, etc.
The capsule, polar pattern and sonic characteristics are similar to the KM 183 analog model and is intended for live sound reinforcement and broadcast as well as recording applications. The omnidirectional polar pattern provides a generous pick up area and is suitable for X,Y (with cardioid mic and baffle plate) stereo miking, ambiance miking or spot miking instruments such as piano, wind instruments organ and choir. The KM 183D features a non-reflective finish.
- Stereo Matched Set
- This package includes a stereo matched pair of KM 183D microphones for precise stereo capturing of vocals, instruments, ambiance, etc.
- AES/EBU Digital Output
- The KM 183D features a 24-bit AES/EBU digital output stage and built-in A/D converter for direct connection to the AES/EBU inputs on field-recorders, digital mixers, or the Neumann DMI-2 direct remote control unit.
- AES/EBU 42 Standard
- The digital output complies with the current AES/EBU 42 standard which allows remote powering and software remote control via the optional DMI-2 interface.
- Omnidirectional Polar Pattern
- The omnidirectional polar pattern offers a generous pick up area, suitable for room ambiance capture as well as spot miking on piano, organ, wind instruments and choir.
- Compact Rugged Construction
- The slim design and rugged construction allow easy microphone placement while remaining road worthy.
Operating Principle | Pressure Gradient |
Polar Pattern | Omnidirectional |
Frequency Range | 20 Hz to 20 kHz |
Signal to Noise Ratio | 69 dB CCIR 81 dB A-Weighted |
Equivalent Noise Level | 25 dB CCIR 13 dB A-Weighted |
Maximum SPL | 135 dB SPL |
Pad | -18 dB |
Sensitivity | -41 mV/Pa |
General | |
---|---|
Output Connectors | 1 x 3-Pin XLR |
Operating Current Consumption | 150 mA |
Operating Voltage | 48 V ± 4 V |
Length | 4.25" / 108 mm |
Diameter | 0.87" / 22 mm |
Weight | 2.86 oz / 81 g |
