Neumann KM 185 A nx

by Neumann
Verfügbarkeit: 7-10 days delivery
SKU
SEN-008633

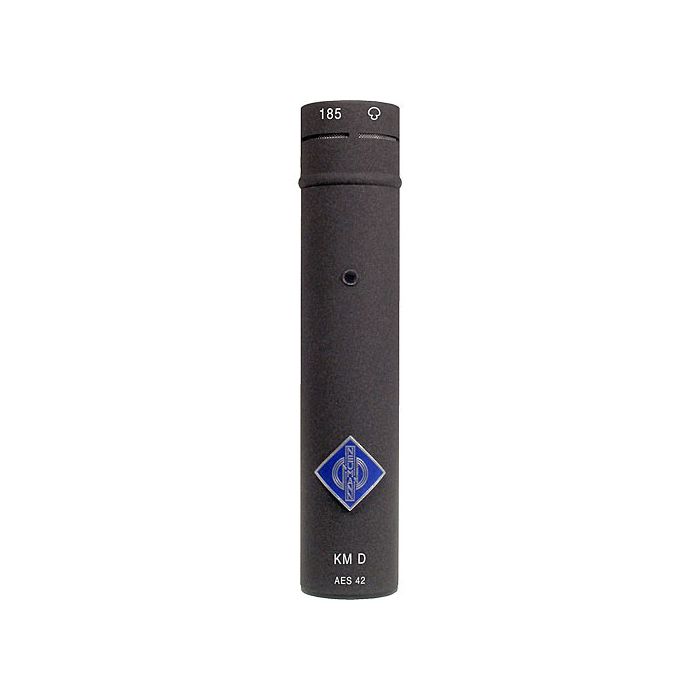

Neumann KM 185 A NX Small Diaphragm Hypercardioid Digital Microphone with AES/EBU Output (Nextel Black)

1.274,25 € 1.019,40 €

Paket beinhaltet

  • Neumann KM 185 A NX
  • WNS110 Foam Windscreen for KM Series Microphone
  • SG21/17MT Swivel Mount with Clamp for 21mm Mics
  • Wooden Box
  • Limited 2-Year Warranty

The nextel black KM 185 A NX from Neumann is a hypercardioid, pressure condenser microphone with an AES/EBU digital output and built-in A/D converter. The internal digital conversion and an AES/EBU 42 output standard allows remote software operation with the DMI-2 digital microphone interface, or direct connection to AES inputs on digital mixers, field recorders, etc.

The capsule, polar pattern and sonic characteristics are similar to the KM 185 analog model and is intended for live sound reinforcement and broadcast, as well as recording applications. The hypercardioid polar pattern minimizes noise and off-axis audio signal. Vocals and instruments are captured without feedback, and ambiance. The KM 185 D features a non-reflective finish.

AES/EBU Digital Output
The KM 185 D features a 24-bit AES/EBU digital output stage and built-in A/D converter for direct connection to the AES/EBU inputs on field-recorders, digital mixers, or the Neumann DMI-2 direct remote control unit.
AES/EBU 42 Standard
The digital output complies with the current AES/EBU 42 standard, which allows remote powering and software remote control via the optional DMI-2 interface.
Hypercardioid Polar Pattern
The hypercardioid polar pattern offers greater attenuation at the off-axis sections of the microphone, resulting in a tighter pattern with even less noise caused by ambiance.
Compact Rugged Construction
The slim design and rugged construction allow easy microphone placement while remaining road worthy.
Operating Principle Pressure Gradient
Polar Pattern Hypercardioid
Frequency Range 20 Hz to 20 kHz
Signal to Noise Ratio 69 dB CCIR
78 dB A-Weighted
Equivalent Noise Level 25 dB CCIR
16 dB A-Weighted
Maximum SPL 136 dB SPL
Pad -18 dB
Sensitivity -42 dBFS
Digital Performance
Bit Depth 24-Bit
General
Output Connectors 1 x 3-Pin XLR
Operating Current Consumption 150 mA
Operating Voltage 48 V ± 4 V
Length 4.25" / 108 mm
Diameter 0.87" / 22 mm
Weight 3.14 oz / 89 g
