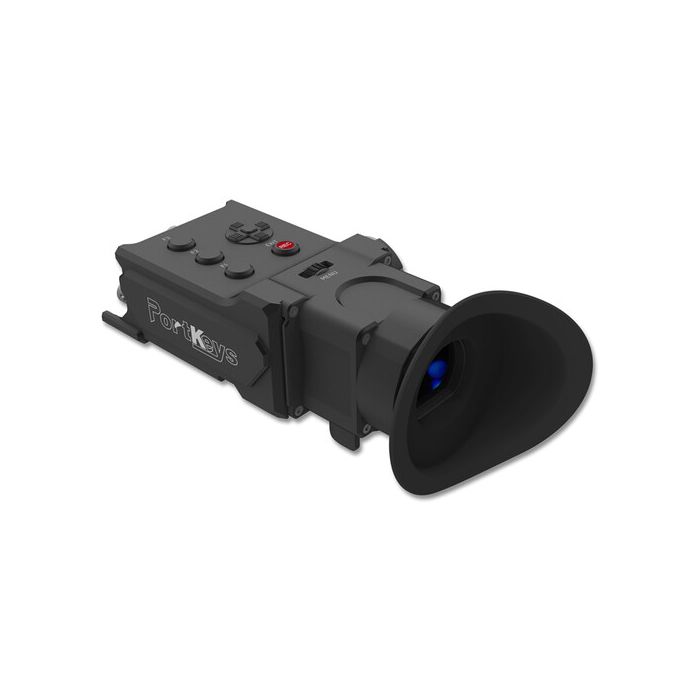

PortKeys OEYE-RED
by PortKeys1920 x 1080 Resolution Micro-OLED EVF
Allows RED DSMC2 Menu Control
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- PORTKEYS OEYE 4K 3G-SDI/HDMI EVF with RED Camera Menu Control
- 4-Pin to D-Tap Power Cable
- 5-Pin to 5-Pin Power Cable
- 4-Pin to 3-Pin Control Cable
- 9-Pin to 3-Pin Control Cable
- SDI Cable
- Mounting Clamp
- Allen Wrench
- Plastic Storage Case
If you're in need of a display that can help simplify your RED camera rig, add a high-resolution OLED EVF with RED camera menu control with this OEYE 4K 3G-SDI/HDMI EVF from PORTKEYS. The OEYE electronic viewfinder offers a bright, sharp OLED micro-display with a comfortable eyepiece to view your camera video, and it also allows you to view and control the menu navigation and overlays on your RED DSMC2 camera right from the EVF.
Video connectors include HDMI input and loop output that support resolutions up to DCI 4K24, and 3G-SDI input and loop output that support resolutions up to 1080p60, so you can preview your cinema video in high-resolution as well as send it to external displays. The OEYE connects to the camera control port using one of the included LEMO-type control cables, and it uses RCP (REDLINK Command Protocol) for communication.
The durable aluminum chassis is lightweight at only 14 oz, and it features mounting threads on the bottom and an ARRI-style rosette on the side that offer multiple mounting options and 360° rotation. The unit also features cooling fans that synchronize with the RED camera fan mute feature when silence is required on set.
RED Camera Menu Control Compatibility
- RED MONSTRO 8K VV
- RED HELIUM 8K S35
- RED GEMINI 5K S35
- RED DRAGON-X 6K S35
- SCARLET-W 5K
Key EVF Features
- 0.71", 1920 x 1080 micro-OLED EVF display with comfortable eyecup
- 200 cd/m² brightness, 100,000:1 contrast ratio, 8-bit color
- HDMI input and output support resolutions up to DCI 4K24
- 3G-SDI input and output support resolutions up to 1080p60
- 5-pin LEMO-type remote control output port
- Built-in adjustable +8 to -3 diopter
- Fan synchronization with RED camera
- Rosette mount on the side
- Durable aluminum construction
Monitoring and Image Analysis Tools
- 3D LUT
- Audio meters
- Pixel-to-pixel
- Brightness
- Contrast
- Chroma
- Backlight
- Zoom
- OSD flip
- Grids
- Peaking
- False color
- Waveform
- Sharpness
- Tint
- Color temperature
- Aspect
- Check field
- H/V delay
- Guides
- Crosshairs
- Zebra
- Underscan
Display | |
Color/Monochrome | Color |
Panel Type | OLED |
Display Size | 0.71" / 1.8 cm |
Screen Resolution | 1920 x 1080 |
Aspect Ratio | 16:09 |
Touchscreen | No |
Maximum Brightness | 200 nits / cd/m2 |
Contrast Ratio | 100,000:1 |
Bit Depth / Color Support | 8-Bit (16.7 Million Colors) |
Pixels Per Inch (ppi) | 3102 ppi |
Image Controls |
Color Temperature Selection, Customizable Aspect Ratios, False Color, Focus Peaking, H/V Delay, Image Flip, Image Rotate, OSD Flip, Pixel Zoom, Pixel-to-Pixel Zoom, Screen Markers, Underscan, Waveform, Zebra
|
Inputs / Outputs | |
Video I/O | 1x BNC (3G-SDI) Input |
1x BNC (3G-SDI) Loop Output | |
1x HDMI Input | |
1x HDMI Loop Output | |
Power I/O | 1x LEMO 4-Pin Input |
System Connection | 5-Pin |
Video Format | HDMI |
DCI 4K: 24 | |
UHD 4K: 30/29.97/25/24/23.98 | |
1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
1080PsF: 30/29.97/25/24/23.98 | |
1080i: 60/59.94/50 | |
720p: 60/59.94/50 | |
576p: 50 | |
576i: 50 | |
480p: 60/59.94 | |
480i: 60/59.94 | |
SDI (8-Bit 4:2:2 YUV) | |
1080p: 60/59.94/50 | |
SDI (8-Bit 4:4:4/4:2:2 RGB, YUV) | |
1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
720p: 60/59.94/50 | |
Optics | |
Diopter Correction | -3.0 to +8.0 |
Power | |
DC Input Power | 7 to 24 VDC |
Power Consumption | 10 W |
General | |
Mounting | 1x Rosette |
Material of Construction | Aluminum |
Dimensions |
7.1 x 2.9 x 2.7" / 180 x 72.4 x 69.7 mm (Including )
|
Weight | 14.1 oz / 400 g, Including |
Packaging Info | |
Package Weight | 3.92 lb |
Box Dimensions (LxWxH) | 9.9 x 8.8 x 4.8" |
