SKAARHOJ ATEM GPI & Tally Interface Breakout Board
by Skaarhoj
Verfügbarkeit:
14-20 days delivery
SKU
ATEM-GPITally-BO-Board
- For Use with ATEM GPI & Tally Interface
- 8 x GPI Phoenix Inputs
- 8 x GPO Phoenix Outputs
- DC Plug for External Power
312,00 €
249,60 €
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- SKAARHOJ ATEM GPI and Tally Interface Breakout Board

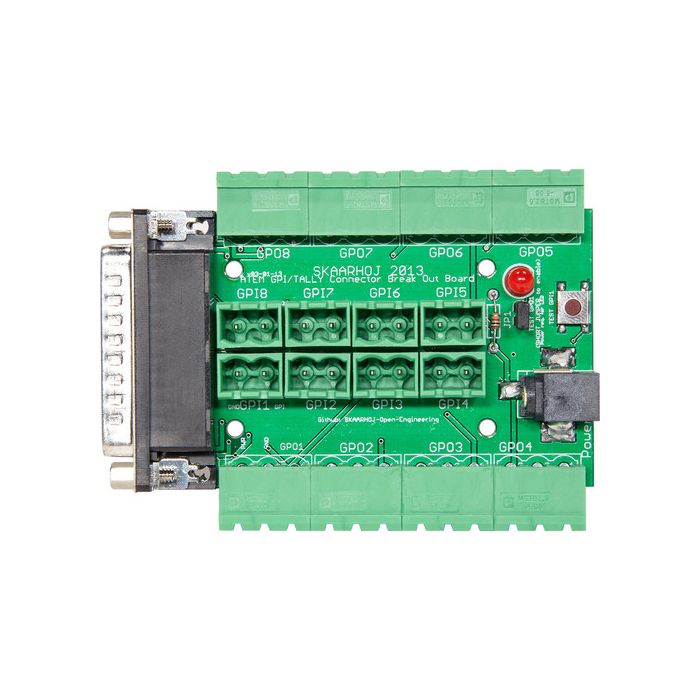

The ATEM GPI and Tally Interface Breakout Board from SKAARHOJ connects through the 25-pin D-Sub connector port to ATEM GPI and tally interfaces, ETH-GPI Link series, and Blackmagic Design GPI/tally boxes. The ATEM GPI and tally interface provides an easy interface for individual tally lamp control to your ATEM. It features eight sturdy onboard GPI Phoenix input connectors and eight GPO Phoenix output connectors, plus a DC plug for external power. The board features a confirmation LED which lights up when tally is on input 1, and a push button which lets you test the GPI of input 1.
SKAARHOJ ATEM-GPITALLY-BO-BOARD Specs | |
Compatibility
|
ATEM GPI and Tally Interface |
ETH-GPI Link Series | |
Blackmagic Design GPI/Tally Boxes | |
Connectors | 1 x 25-Pin D-Sub Male, I/O Interface |
8 x 2-Pin Male Phoenix, GPI Input | |
8 x 3-Pin Male Phoenix, GPO Output | |
1 x 5.5 mm DC Barrel, Power Input | |
Indicators | 1 x LED, Tally GPO Output 1 |
Control | 1 x Button, Test GPI Input 1 |
Packaging Info
|
|
Package Weight | 0.35 lb |
Box Dimensions (LxWxH) | 7.7 x 4.7 x 2.4" |
