SKAARHOJ PTZ Pro
by Skaarhoj- IP PTZ Controller with PoE Support
- Supports Multiple PTZ Encoders
- 3-Axis Joystick, Dedicated Focus Knob
- RGB Backlit Keys with Labeling Presets
- Ratenzahlung Sie können auf Raten mit den Visa, Visa Premium, Maestro, Master Card und Diners reditkarten zahlen. Die Gebühr beträgt 5% des offengelegenen Preises und wird im Warenkorb bei der Zahlungsauswahl gerechnet. Sie können mehr Details auf dem Link Zahlungsarten überprüfen.
- Schnelle Lieferung Für alle Lieferungen innerhalb Kroatiens, die bis 14.00 Uhr erhaltet werden, wird die Lieferung binnen einem Arbeitstag geliefert. Für die ganze Europa nehmen wir die schnelle Zustellung vor und mehr Details können Sie auf dem Link Lieferungsarten überprüfen.
- Internationaler Kauf Die EU-Firmen (außer die Republik Kroatien) zahlen den Preis ohne die Mehrwertsteuer mit dem gültigen VAT ID- Nummer. Der Preis wird bei Check-Out gerechnet. Alle Käufer außerhalb der Europäischen Union zahlen den Ausfuhrpreis ohne die Mehrwertsteuer.
Paket beinhaltet
- SKAARHOJ PTZ Pro Camera Controller
- 12V Power Supply
- USB Cable
- Ethernet Cable

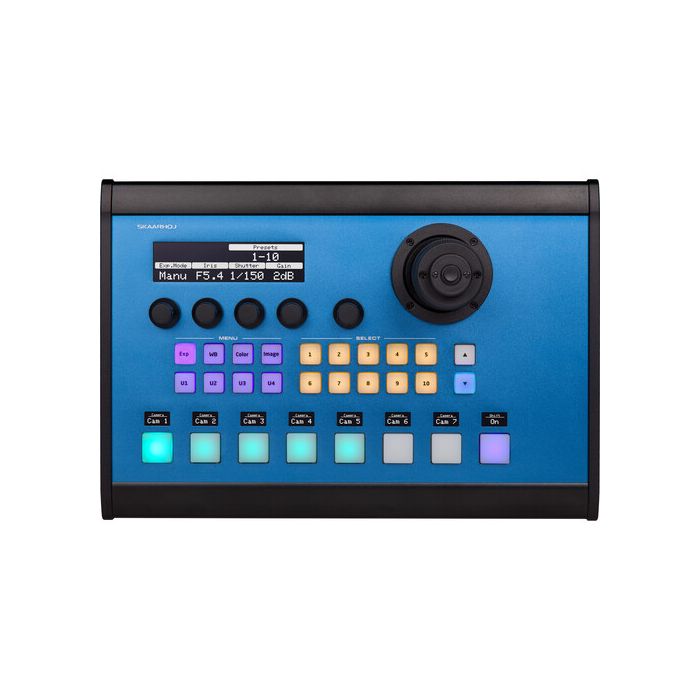

Perform precise pan/tilt/zoom control movements and have configuration and selection of PTZ cameras at your fingertips with the PTZ Pro Camera Controller from SKAARHOJ. Featuring a precision 3-axis joystick and dedicated focus knob, this compact controller makes it easy to pan, tilt, and rotate your cameras while also controlling their focus and zoom. The control panel features four backlit encoder knobs, ten camera selection buttons, and multiple programmable multifunction keys for presets and menu navigation.
The PTZ Pro runs the SKAARHOJ-developed open-source UniSketch OS, which is user programmable to fit specific workflows. PoE (Power-over-Ethernet) technology simplifies setup by enabling data and power to travel via a single cable. The controller is compatible with VISCA devices as well as other IP-controlled cameras from brands such as AIDA, Lumens, NewTek, Panasonic, PTZ Optics, and Sony.
A power adapter and an Ethernet cable are included in the box. There are available options to upgrade the joystick to the Hall Effect ergonomic joystick, as well as an option for an SDI upgrade component for use with Blackmagic Arduino Shields and fiber converters.
Key Features
- Four backlit encoder knobs and a bright status display
- Three axis-joystick and dedicated focus knob
- Backlit display for status and menu navigation
- Camera select buttons and programmable multifunction keys with bright RGB displays for presets and camera selection
- Slim, ergonomic console form factor
- Ethernet with PoE (IEEE802.3af)
- UniSketch OS
Compatibility
- Works with a wide range of devices and systems including generic VISCA-compatible devices, AIDA Imaging PTZ3-X20L, Lumens VC-A50P, NewTek NDIHX-PTZ1, Panasonic AW-HEx, PTZOptics PT20X, and Sony BRC-H900, BRC-X1000, and SRG-300
- Optional Hall Effect joystick upgrade for increased ergonomic comfort and motion precision
- Optional SDI extension for Blackmagic Arduino and fiber converters for camera control data
SKAARHOJ PTZ Pro Specs | |
General
|
|
Number of Supported Cameras | 10 Channels |
Supported Control Protocols | IP |
VISCA | |
Control Interface | 1 x RJ45 (IP Control, VISCA) Output |
Other I/O | 1 x USB Micro-B (USB 3.1 / USB 3.2 Gen 1) Input |
Controls | 1 x Pan/Tilt Joystick |
1 x Focus Knob | |
4 x Multifunction Knobs | |
10 x Multifunction, Camera Selection Buttons | |
10 x Multifunction Buttons | |
8 x Programmable Buttons | |
Presets | 10 via IP, VISCA |
Display
|
|
Touchscreen | No |
Power
|
|
PoE Support | PoE 802.3af |
Power Connectors | 1 x JEITA |
DC Input Power | 12 VDC |
Physical
|
|
Security Lock Support | None |
Dimensions | 10.1 x 7 x 5.2" / 25.7 x 17.8 x 13.2 cm |
Weight | 2.7 lb / 1.2 kg |
Packaging Info
|
|
Package Weight | 4.9 lb |
Box Dimensions (LxWxH) | 17 x 17 x 5" |
