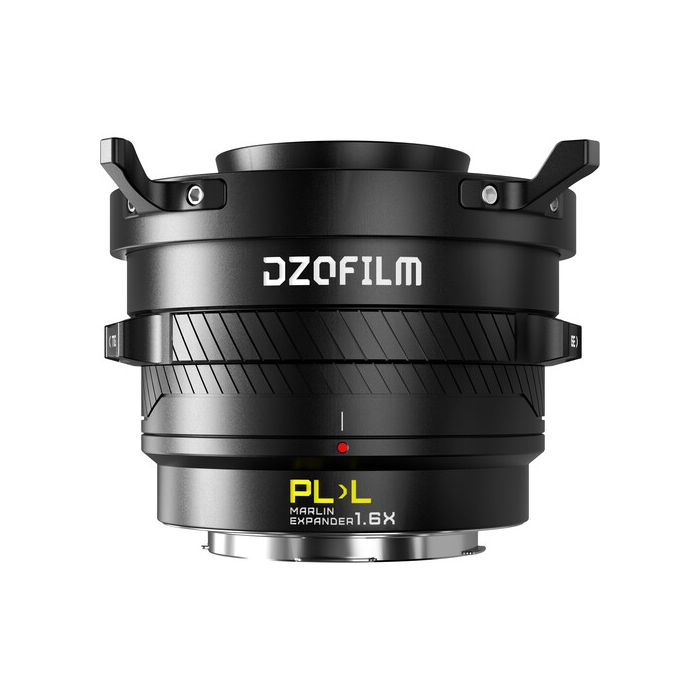

DZOFilm Marlin 1.6x Expander PL lens to L camera

Raspoloživost: Isporuka 14-20 dana
SKU
DZO-EXPLL-BLK
  • Retain S35 Angle of View on Full Frame
  • Magnifies S35 Lens Frame by 1.6x
  • For PL-Mount Lens on L-Mount Camera
1.370,36€/10.325,00 kn 1.096,29€/8.260,00 kn
Tečaj konverzije: 1 EUR = 7,53450 HRK

Sadržaj pakiranja

  • DZOFilm Marlin 1.6x Expander for PL Lens to L-Mount Camera
  • Front Cap
  • Rear Cap
  • Color Box
  • Detachable Steel Mount
  • 2 x Screw
  • Flat Pocket

Expand the angle of view of your S35 lens when using it on a full-frame or VistsaVision camera with this Marlin 1.6x Expander for PL Lens to L-Mount Camera from DZOFilm. This durable aluminum expander is designed for your S35 PL-mount lens for use on an L-mount camera without sacrificing the S35 angle of view. The expander magnifies the image by 1.6x.

The Marlin is compatible with most S35 lenses and features an easy, quick flange back adjustment ring that allows you to adjust the image further without removing the lens, and no shims are required. Front and rear caps and a detachable steel support base are included.

Compatibility

S35 PL-mount lenses
Full-frame/VV cameras with an L mount

Magnifies the Image Circle by 1.6x

The extender converts Super35 Pictor Zoom lenses to cover full frame or VistaVision sensors. It multiplies the focal length by 1.6x with only 1.5 stops of light loss.

Retains Optical Performance and Operability

The Marlin maintains superb image quality without decreasing resolution, and it enables the use of S35 lenses to be compatible with FF and VistaVision cameras to facilitate the use of different lenses for more possibilities.

Quick Flange Back Adjustment

Minor flange back adjustment is achieved through a back adjustment ring; no need to use shims (excluding PL-PL and PL-LPL versions). To achieve the best image performance, the FBD can be quickly adjusted without removing the lens and camera.

Solid and Sturdy

The expander includes a detachable supporting base and stainless steel mount.

Broad Compatibility

The Marlin is compatible with a wide variety of lenses on the market. The distance from the flange plane of the lens to the rear should be less than PL (19.64mm). The Marlin Adapter Clearance Check tool can be downloaded from the manufacturer's website to check the suitability.

  • Retain S35 Angle of View on Full Frame
  • Magnifies S35 Lens Frame by 1.6x
  • For PL-Mount Lens on L-Mount Camera

DZOFilm DZO-EXPLL-BLK Specs

Adapter

Camera Mount

Leica L

Lens Mount

ARRI PL Mount

Magnification

1.6x

Electronic Communication

No

Display

No

Neutral Density Filter

0.45 (1.5 Stops)

Physical

Material

Aluminum, Stainless Steel

Weight

1.4 lb / 636.8 g
